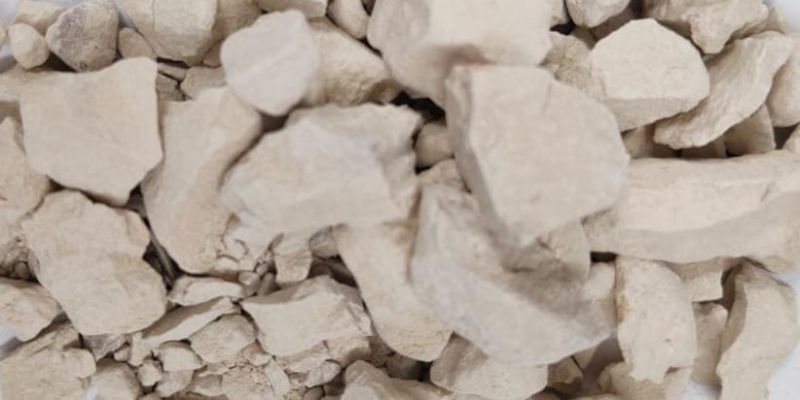

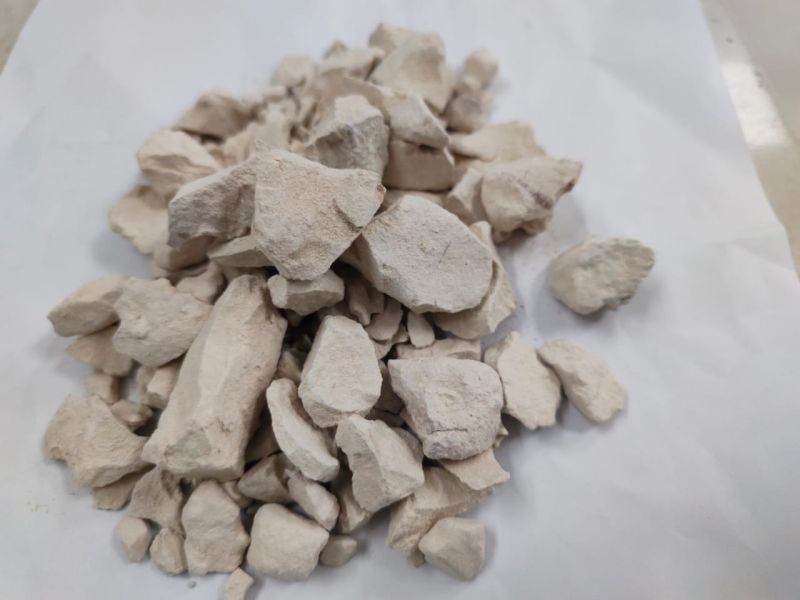

Clay Lumps

Ball clay and china clay differ only in the degree of plasticity. China clay is less plastic than ball clay. Ball clay is a highly plastic variety of kaolin having high binding power, tensile strength and shrinkage. Ball clays are fine grained, highly plastic sedimentary clays, which fire to a light cream or near white colour. ball clays exhibit highly variable compositions and consist of a mixture, primarily of kaolinite, mica and quartz, with each contributing different properties to the clay. Ball clays are mainly used in the manufacture of ceramic white ware and are valued for their key properties of plasticity, unfired strength and their light fired colour.

Ball clays would be ideal ceramic materials. However, in practical terms, they are employed to achieve the desired plasticity but minimized to reduce the detrimental effect on fired whiteness and drying properties. Ball clay is a binding agent and helps to enhance the plasticity, workability, and strength of a pre-fired ceramic body. Some are highly effective for their fluid and casting properties, particularly in the manufacture of sanitaryware. Ball clays are used in ceramic bodies because of their plastic nature combined with high firing temperature. Ball clays have very high dry and green strength and slow drying.

We have large variety of ball clay having different plasticity indexes, firing colour, dry strength and fired strength.

China Clay is also known as kaolin & white clay. Primary clay formed by natural kaolinisation process. It is formed by the decomposition of some part of feldspar mineral. White in colour, Used in the ceramic slip casting process, pressing processes and forming process as a body former and filler. Chemical formula of china clay is Al2O3 2SiO2 2H2O

Processing of China Clay:
Processing of china clay difference from place to place but the essential step are the same. i)Excavating china clay. ii) Sieving process. iii) Settling process. iv) Filter press process. v) Drying process. vi) Packing and Transporting

Properties of China Clay:
China clay is Primary clay and generally found in white colour.

• Casting Rate: High casting rate in slip casting compared to ball clay.
• Particle size: Large particles when compared to Ball clay.
• Green MOR: Modulus of rupture is low compared to ball clay.
• Plasticity: Low plasticity compared to ball clay.
• Refractoriness: High Refractoriness.

Uses of China Clay:
China clay used in all Kind of ceramic product production and other products for its properties. Following are the primary uses of the china clay,

• Used In Sanitaryware industry
• Used in the tiles Production industry.
• Used in Refractory production.
• Used in the Paper industry as a filler.
• Used in Rubber industry as a raw material.
• Used in textiles industries.
• Used in the Dinnerware production process as a raw material.

White clay is sedimentary clay having properties of no shrinkage at 1120°C temperature and giving good-fired strength to the tiles fired at low temperature below 1150°C. Because of no shrinkage or expansion, size will not shrink more in firing. Best suited for wall tiles for both single firing and double fast firing. This clay helps in fast degasification in ceramic tiles because of lower loss on ignition (below 4%) compared to any clays.
